The Studio

The Studio

Regular price $14,150.00 AUD
Regular price Sale price $14,150.00 AUD
Sale Sold out
Shipping calculated at checkout.
Color
Layout

Custom built 6x2.4m or 6x3m cabins. Built in our Sydney Factory. Contact us today for a price on your design.

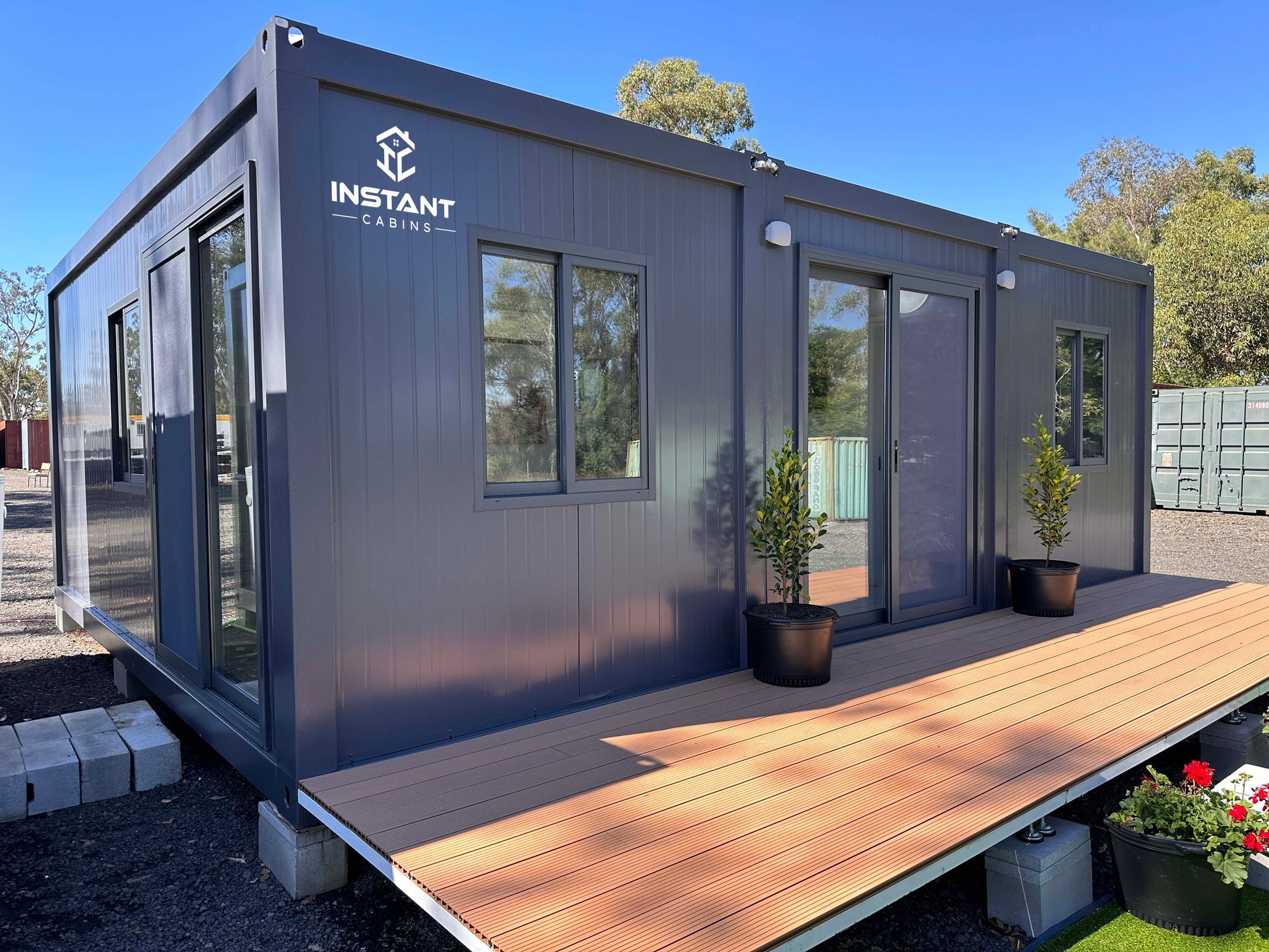

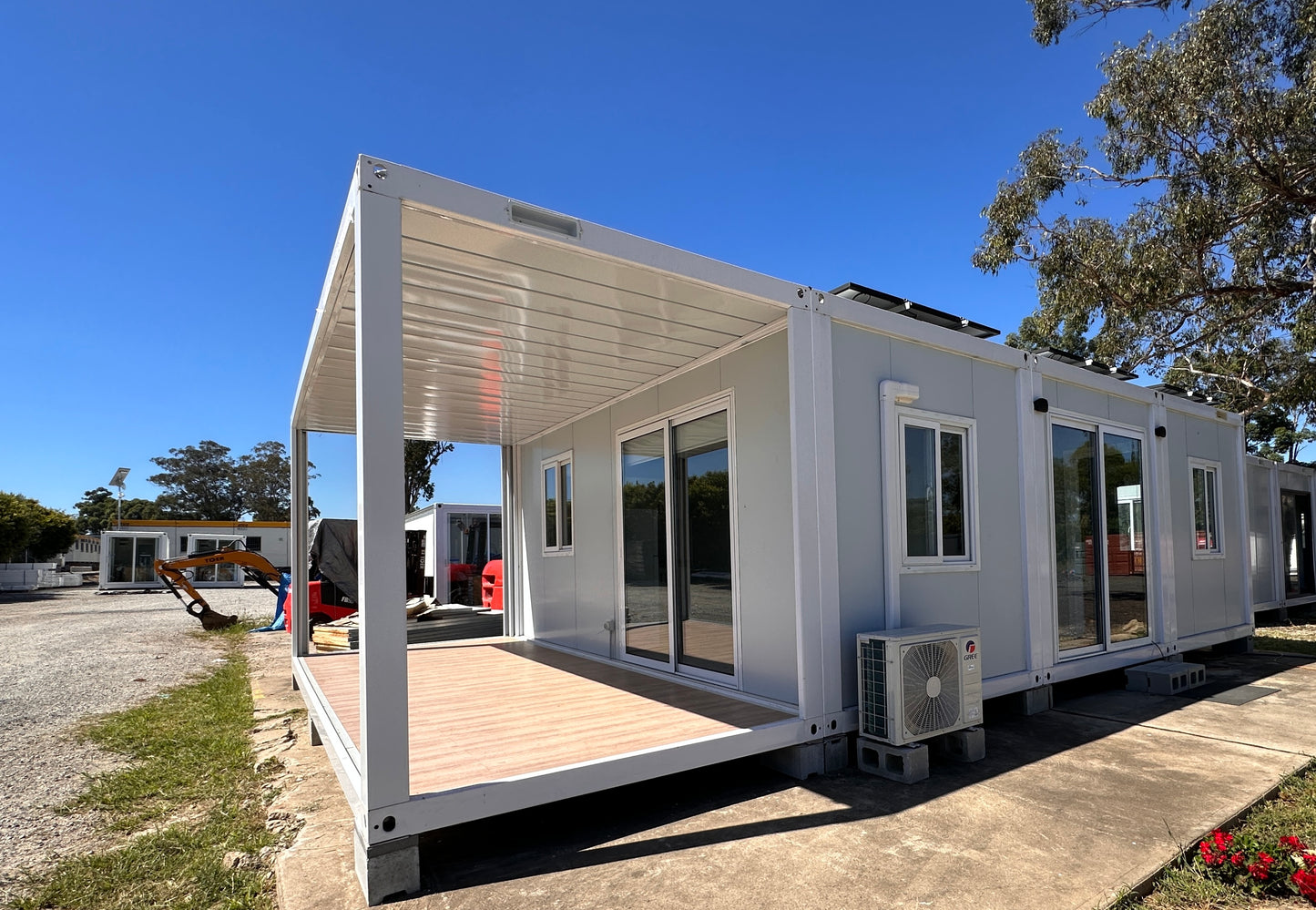

The Studio offers complete customisation options, allowing it to serve as a lunchroom, office, studio flat, weekender, showroom, salon, or massage room. Each space is designed to your specifications with high-quality materials and finishes, all made-to-order in Australia. Simply share your vision with us and we will bring it to life.The product is versatile, with the option to be mobile by placing it on a trailer, meeting the standards of certain councils without requiring a development application and also being a module design, means you can join multiple cabins together to create a larger space.

General Specifications:

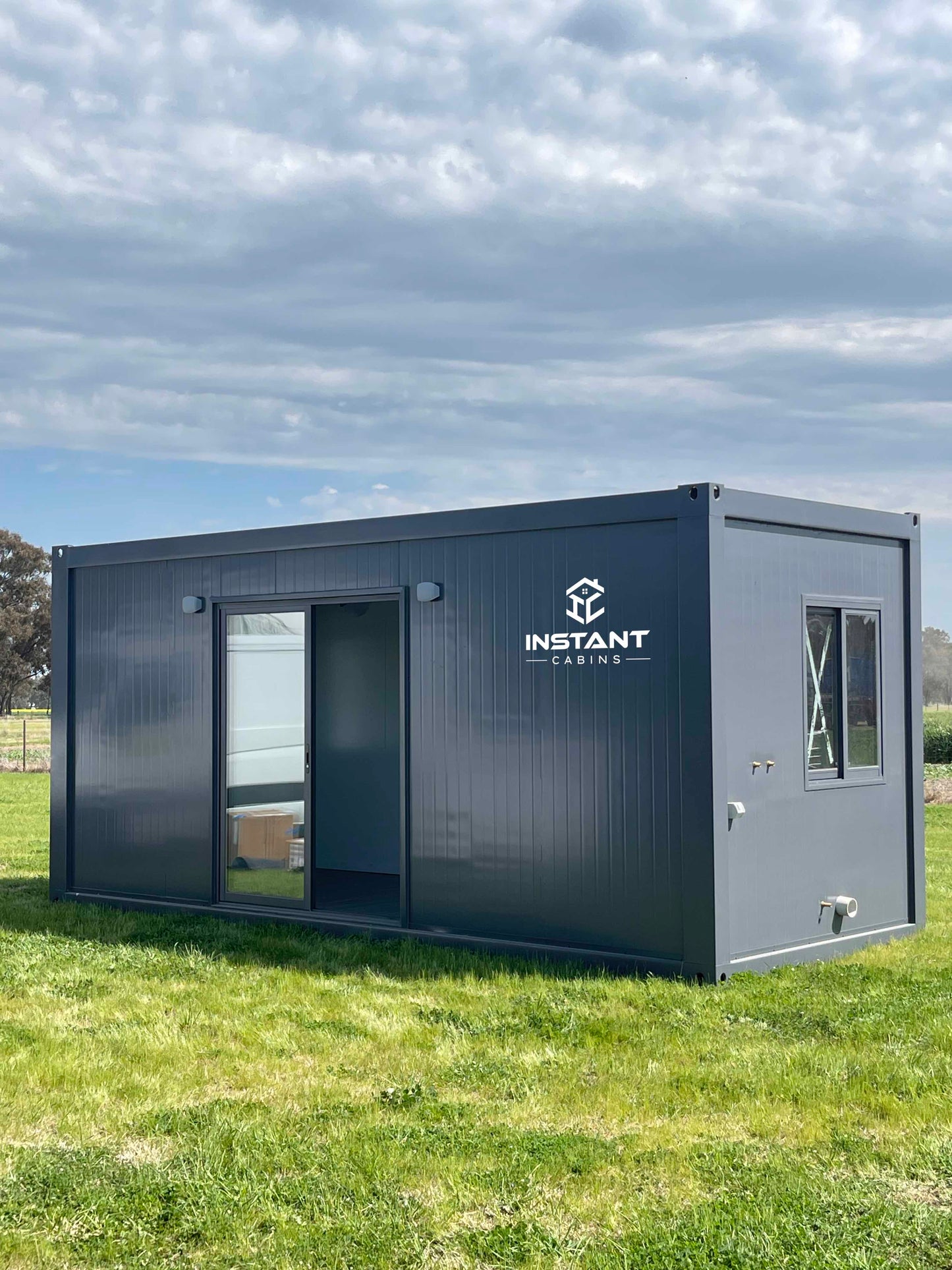

  • 6.000m L x 2.435m W x 2.790m H (external) - 14.6m² Total Area
  • 2.590m internal ceiling height
  • Approx. Weight 1.5 - 2.0 tonnes (depending on customisations)
  • Heavy duty galvanised steel frame (2.5mm & 3.0mm)
  • 18mm Compressed fibro flooring (MGO Flooring)
  • Fire retardant 75mm EPS panels for the walls and roof

Window/Sliding Glass Door Specifications:

  • Living room window - 975mm w x 1,145mm h

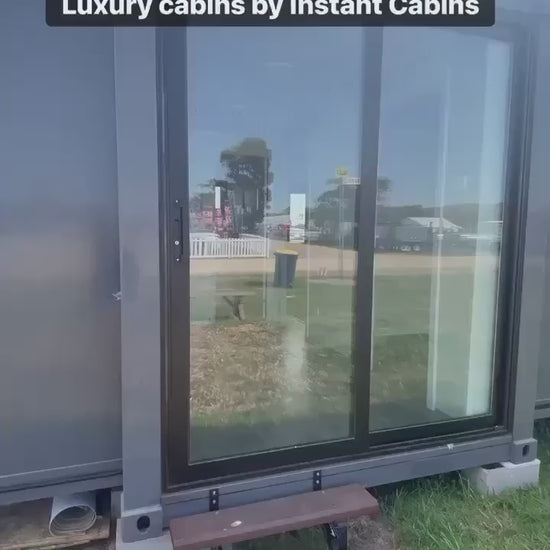

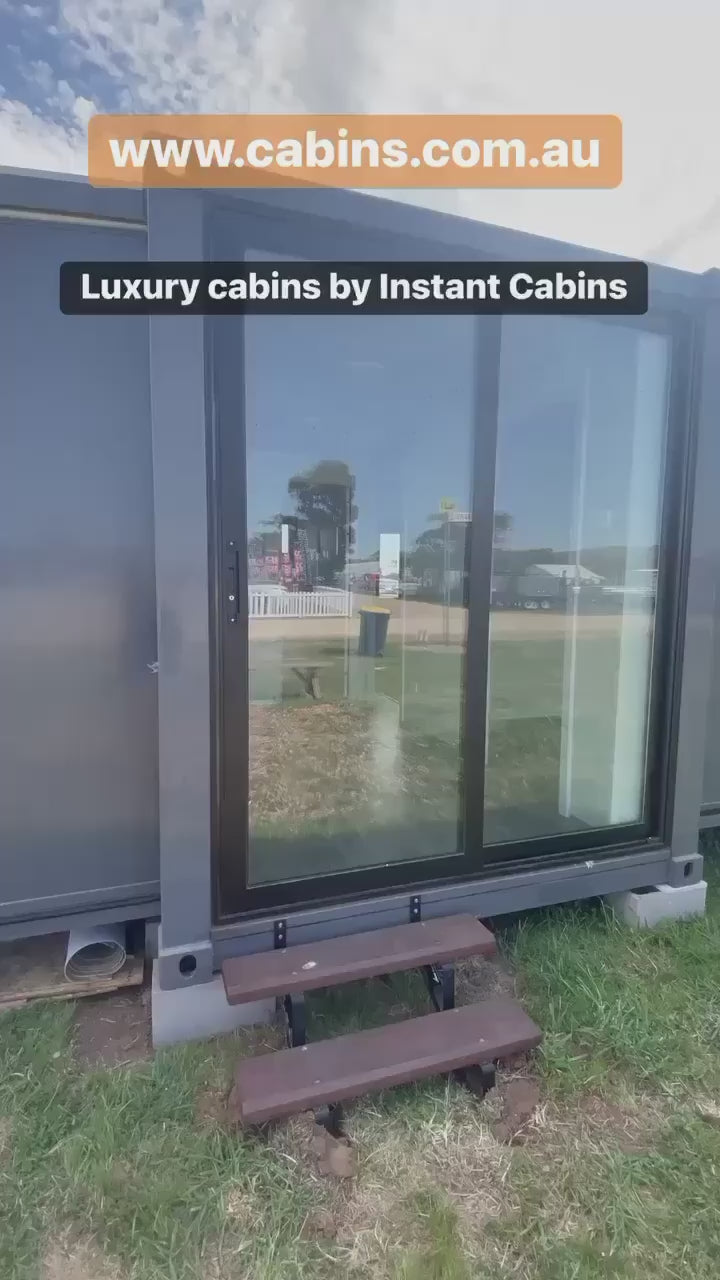

  • Sliding door - 1,880mm w x 2,230mm h
  • AS 2208:1996 glazing
  • Aluminium framed
  • Double glazed
  • Tempered glass
  • Steel mesh fly screen

Plumbing/Electrical Specifications:

  • Australian Standard electrical fitted/installed by licensed electricians.
  • All plumbing/gas work fitted/installed by licensed plumbers/gas fitters*
  • Watermark certificates on all required plumbing products*
  • Pre-fitted hot/cold inlets*
  • Pre-fitted 15 amp 3 pin power inlet

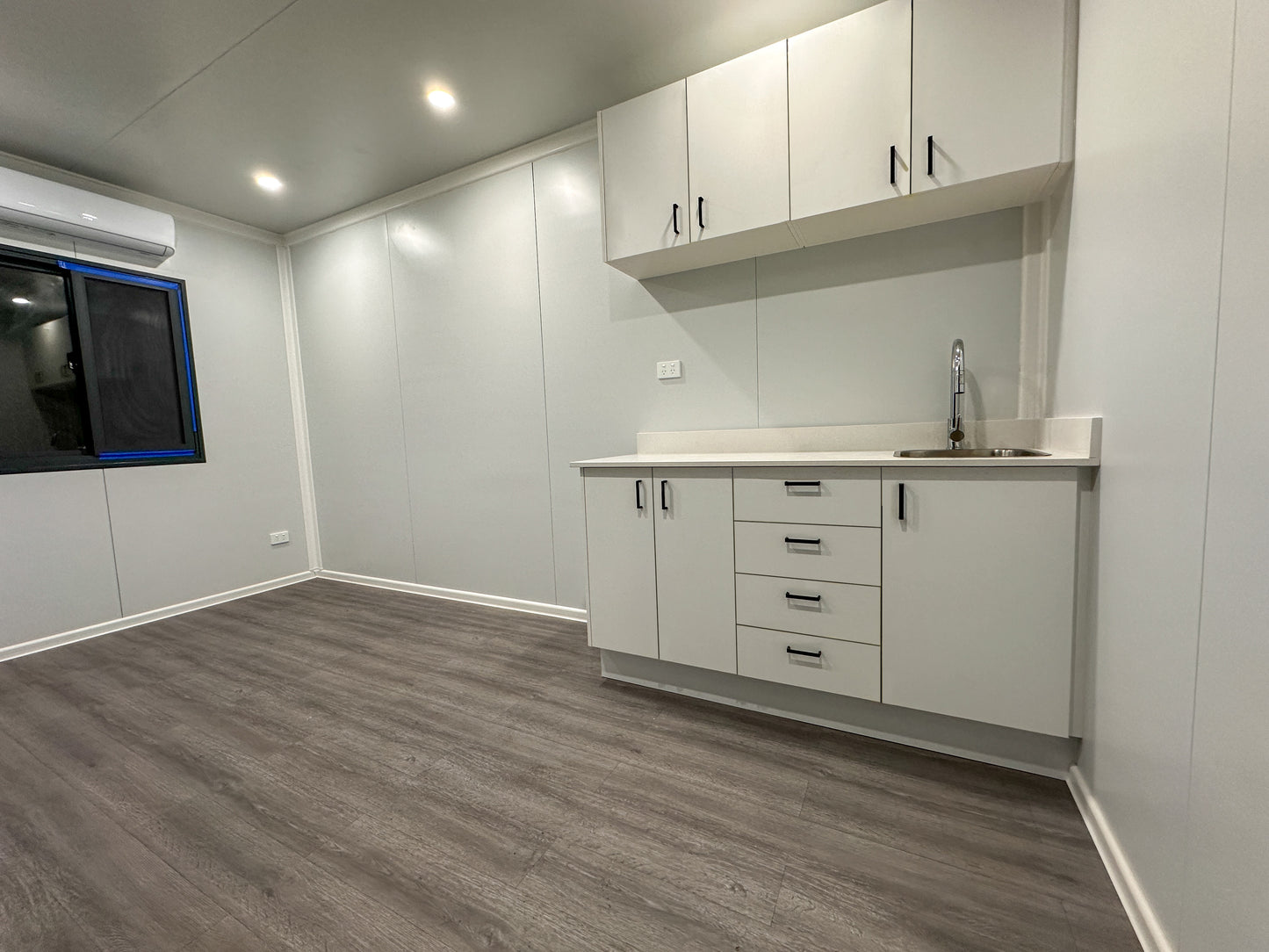

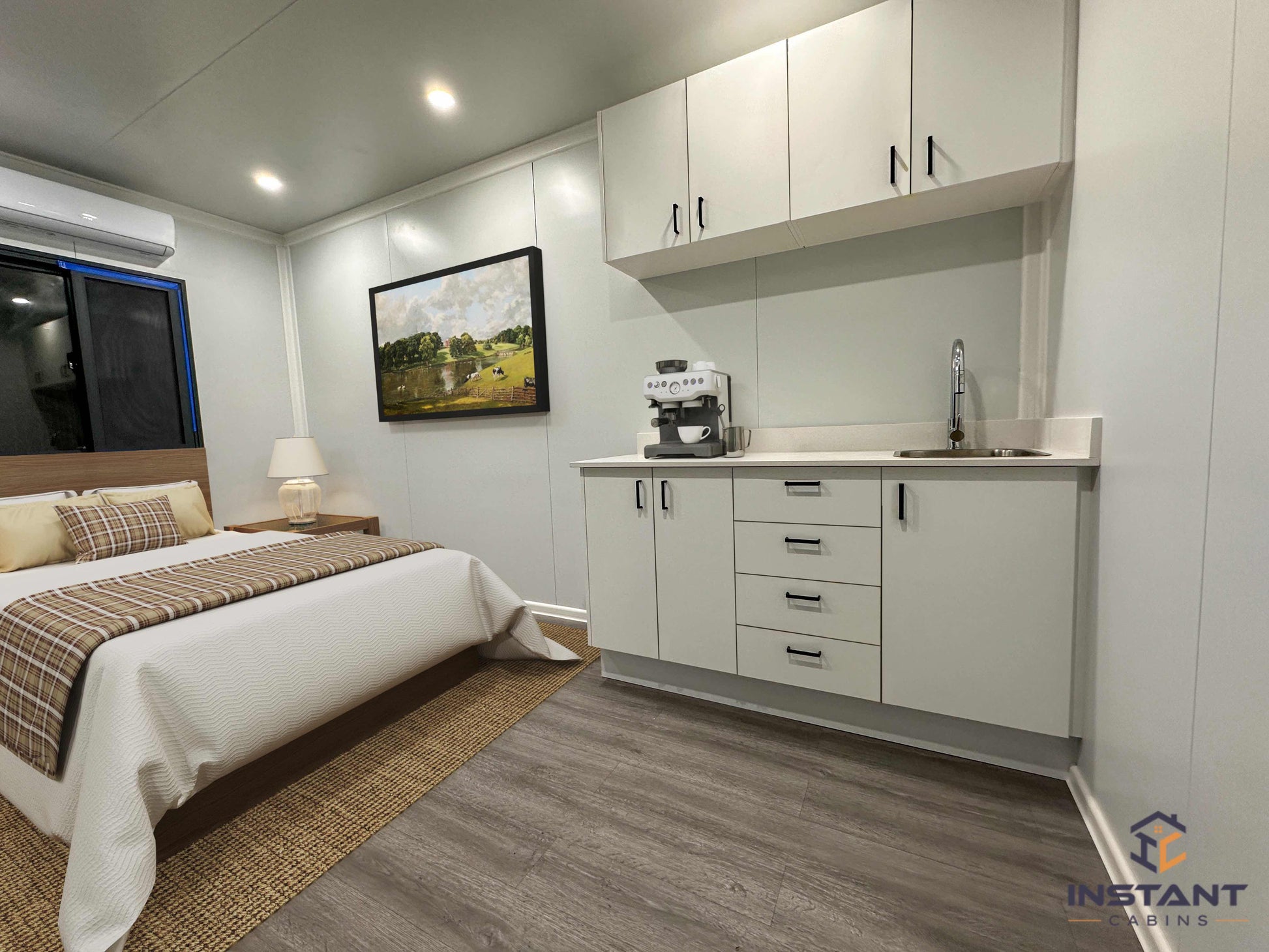

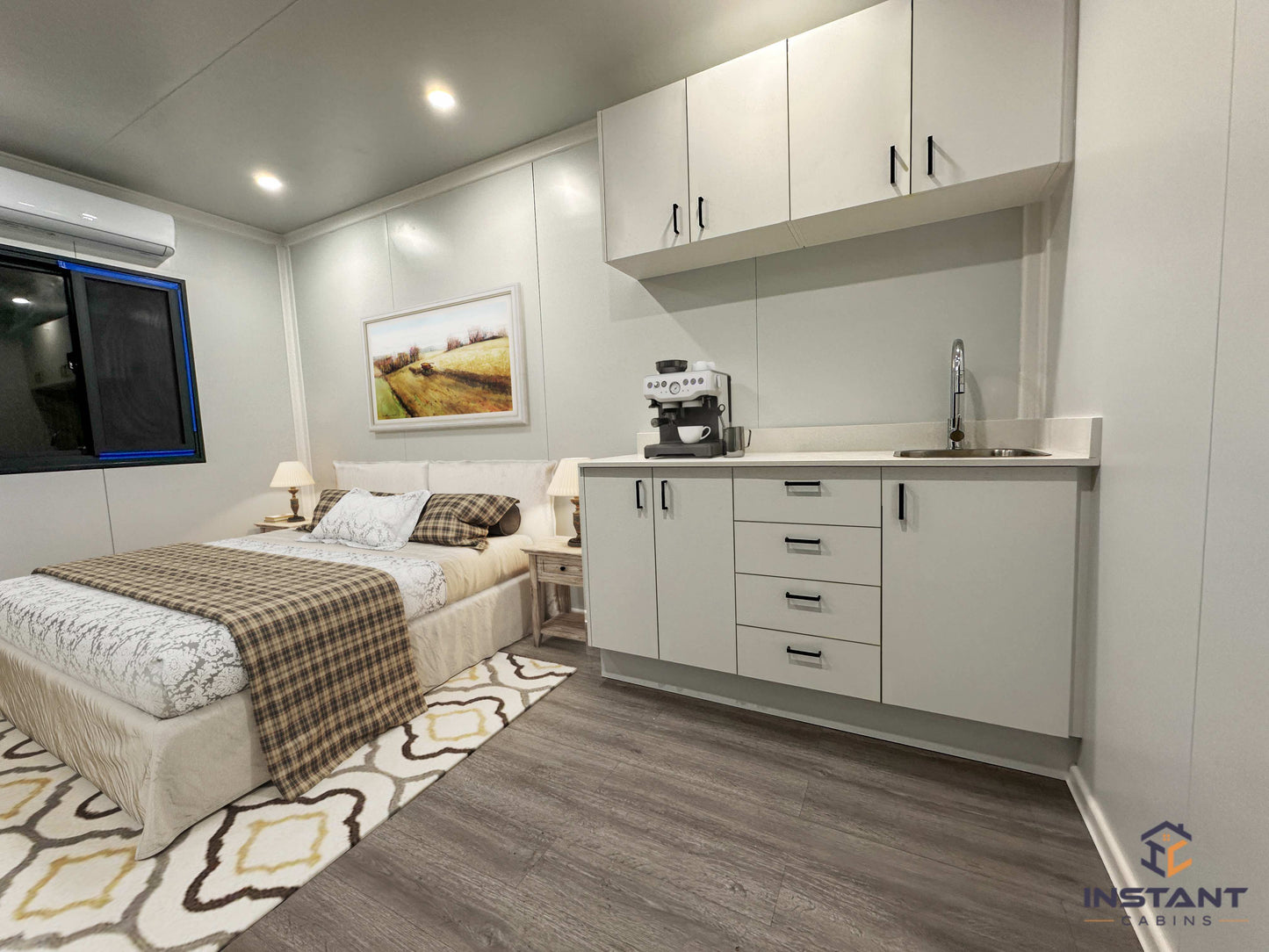

Kitchen Specifications:

  • Kitchen cabinetry
    • 600mm double door cabinet
    • 450mm 4 drawer draws
    • 450mm single door cabinet
    • 2x 800mm overhead cupboards
    • Soft closing doors
    • Adjustable shelves
  • Quantum quartz stone bench top
  • Tiled or Quantum quartz stone splash back
  • 1x double power point above bench top (ideal for appliances)
  • 1x double power point beside kitchen (ideal for fridges)
  • Grade 304 stainless steel single bowl sink
  • 35mm chrome flip mixer tap - WELS 4 star 7.5L/min
  • Hot/cold water pipes connect to cabin main water feed

Bathroom Specifications:

  • AS3740 waterproofing to bathroom
  • 50mm EPS internal wall (bathroom to living area)
  • Aluminium framed door with frosted glass panels
  • Bathroom window - 840mm w x 595mm h with frosted glass
  • Tiled floor with fall
  • Floor to ceiling wall tiles
  • Shower roughly 0.900m x 1.300m
  • Frameless shower panel (257mm) with door (600mm)
  • Chrome hand held and rain maker shower head - WELS 3 star 9L/min
  • Chrome flip mixer for shower head
  • 900mm shower grate with tile insert
  • Back to wall dual flush toilet with soft closing lid
  • 600mm freestanding vanity with SMC top
  • Chrome pin lever mixer - WELS 4 star 7.5L/min
  • Frameless mirror above vanity

Optional Add Ons:

  • Chromagen/Midea 20L continuous flow hot water system
  • Gree Bora 2.5 kW split cycle AC
  • AVOL Genius off-grid solar system
  • Septic Tanks
Ideal for farms, caravan parks, sporting complexes, back yards, events, construction and mine sites.

Contact us today for a price on your design.

* Bathroom, Kitchen and some plumbing/electrical points above are optional extra's.
